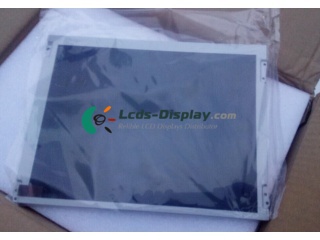

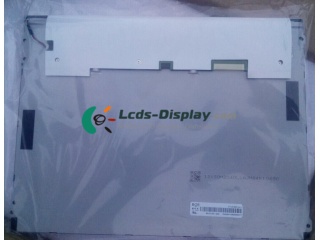

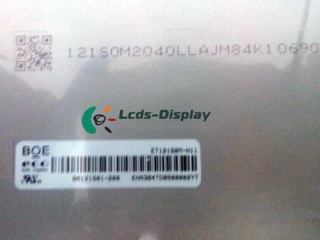

ET121S0M-N11

BOE
Panel Model ET121S0M-N11
Panel Brand BOE
Descrition a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type a-Si TFT-LCD
ET121S0M-N11 Price Request Price & Lead Time
Pixel Format800(RGB)×600 [SVGA]
ConfigurationRGB Vertical Stripe
Active Area246(H)×184.5(V) mm
Outline Dim.279(H)×209(V) ×9.3(D) mm
Bezel Area-
TreatmentAntiglare (Haze 25%)
Luminance400 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
View Direction12 o'clock
Response Time30 (Typ.)(Tr+Td)
Viewing Angle80/80/65/75 (Typ.)(CR≥10)
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.7M 55% (CIE1931)
Light SourceWLED , 30K hours , With LED Driver
Weight630g (Max.)
Frame Rate60Hz
Touch PanelWithout
Interface Type20 pins LVDS (2 ch, 8-bit) , Connector
Power Supply3.3V (Typ.)
EnvironmentOperating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11ET121S0M-N11
LCDs-Display.com is a specialty stocking distributor of BOE ET121S0M-N11.
BOE ET121S0M-N11 are new & original stock available at LCDs-Display.com, same day shipping with free shiping cost.
For the BOE ET121S0M-N11 pdf datasheet or detailed specifications of the BOE ET121S0M-N11 or other BOE LCDs, please email us, we'll be happy to provide one.
Request a quote from BOE ET121S0M-N11 distributor at LCDs-Display.com. Email us: info@LCDs-Display.com
