ET101WS03-DT

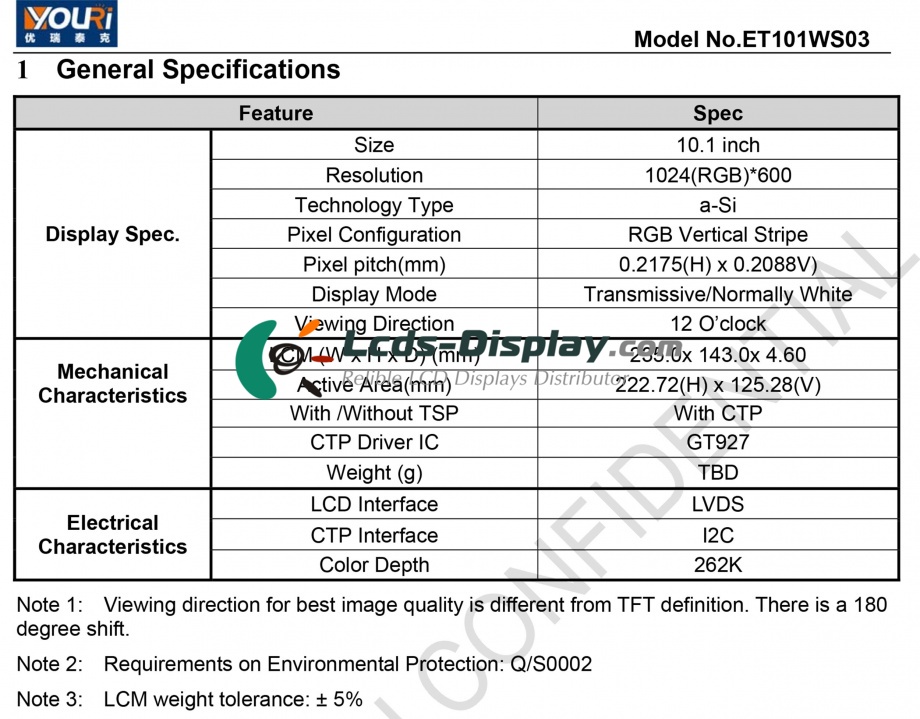

| Panel Model | ET101WS03-DT |
|---|---|
| Panel Brand | Eurotech |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| ET101WS03-DT Price | Request Price & Lead Time |
| System Category | LCD/OLED/EPD Flat Panel > TFT-LCD Panel |
| Keywords Desc. | 10.1 inch with CTP, 1024*600, 40pins, 200nits, LVDS , TFT |
| Product Class | Graphic LCD Display |
| Product Tags | Capacitive Touch LCD |
| Panel Composition | LCM |
| Resolution | 1024×600 |
| Aspect Ratio | 16:9 (W:H) |
| Form Factor | Flat Rectangle |
| Active Area | 222.72 (W) × 125.28 (H) mm (A.A) |
| Outline Dimension | 235 (W) × 143 (H) mm |
| Max. Depth | 4.6 mm |
| LC Family | TN |
| Polarizer | Transmissive |
| Brightness | 200 (Typ.) |
| Contrast Ratio | 500:1 (Typ.) |
| Viewing Angle | 60/70/70/70 (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| Colors Amount | 262K |
| Backlight Type | WLED |
| Interface Type | LVDS |
| Interface Pins | 40 Pins |
| Touch Panel | PCAP |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -30 ~ 80 °C |
LCDs-Display.com is a specialty stocking distributor of Eurotech ET101WS03-DT.
Eurotech ET101WS03-DT are new & original stock available at LCDs-Display.com, same day shipping with free shiping cost.
For the Eurotech ET101WS03-DT pdf datasheet or detailed specifications of the Eurotech ET101WS03-DT or other Eurotech LCDs, please email us, we'll be happy to provide one.
Request a quote from Eurotech ET101WS03-DT distributor at LCDs-Display.com. Email us: info@LCDs-Display.com
Eurotech ET101WS03-DT are new & original stock available at LCDs-Display.com, same day shipping with free shiping cost.
For the Eurotech ET101WS03-DT pdf datasheet or detailed specifications of the Eurotech ET101WS03-DT or other Eurotech LCDs, please email us, we'll be happy to provide one.
Request a quote from Eurotech ET101WS03-DT distributor at LCDs-Display.com. Email us: info@LCDs-Display.com
