Overview Specification

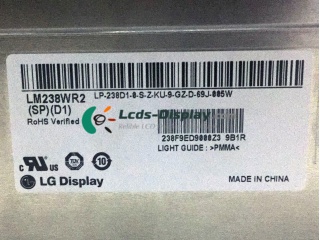

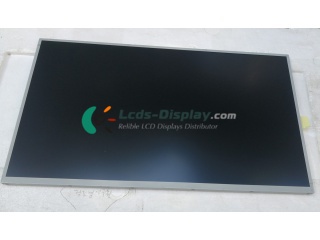

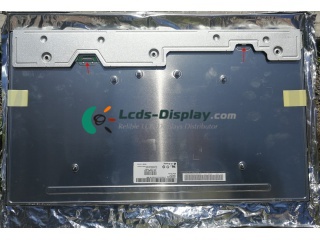

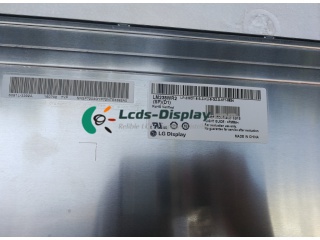

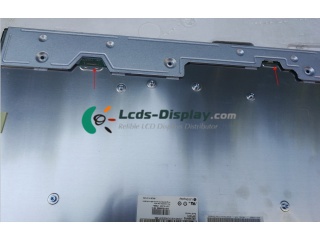

LM238WR2-SPD1

LG Display
Panel Model LM238WR2-SPD1
Panel Brand LG Display
Descrition a-Si TFT-LCD ,23.8 inch, 3840×2160
Panel Type a-Si TFT-LCD
LM238WR2-SPD1 Price Request Price & Lead Time
Pixel Number3840(RGB)×2160 (UHD)
ArrangementRGB Vertical Stripe
Active Area(mm)527.04 × 296.46 (H×V)
Outline(mm)545 × 317.4 × 12.7 (H×V×D)
Bezel Area(mm)530.2 × 299.6 (H×V)
TreatmentAntiglare, Hard coating (3H)
Luminance250 cd/m² (Typ.)
Contrast Ratio1000 : 1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Response14 (Typ.)(G to G) ms
Good View atSymmetry
Work ModeIPS, Normally Black, Transmissive
Color Depth1.07B (sRGB)
Backlight16S4P WLED , 30K hours , No Driver
Mass1.73/1.82Kgs (Typ./Max.)
Refresh Rate60Hz
TouchscreenWithout
Signal TypeeDP (4 Lanes) , Connector , 30 pins
Voltage Supply10.0V (Typ.)
Max. RatingsStorage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1LM238WR2-SPD1
LCDs-Display.com is a specialty stocking distributor of LG Display LM238WR2-SPD1.
LG Display LM238WR2-SPD1 are new & original stock available at LCDs-Display.com, same day shipping with free shiping cost.
For the LG Display LM238WR2-SPD1 pdf datasheet or detailed specifications of the LG Display LM238WR2-SPD1 or other LG Display LCDs, please email us, we'll be happy to provide one.
Request a quote from LG Display LM238WR2-SPD1 distributor at LCDs-Display.com. Email us: info@LCDs-Display.com
